Equine Distal Limb

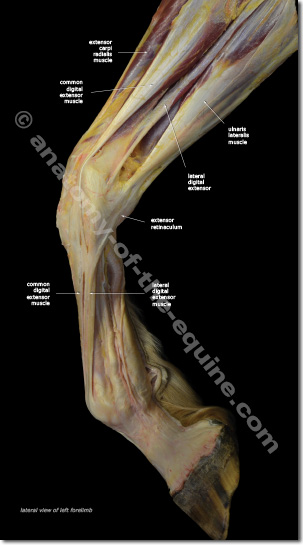

Lateral forelimb

A beautifully dissected lateral view that clearly illustrates the complexity of the equine forelimb.

The slight flex to the leg highlights the connections of the extensor tendons to the corresponding muscles in the forearm.

Medial forelimb

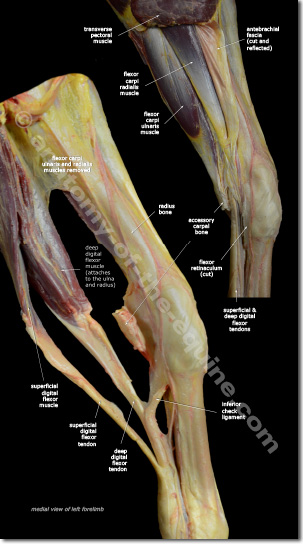

This exacting set of photos is particularly useful for showing the muscle bellies of the deep digital flexor tendon and the superficial digital flexor tendon.

It also illustrates the role of the inferior check ligament and how the accessory carpal bone plays a vital part in protecting the flexor tendons from over-extending.

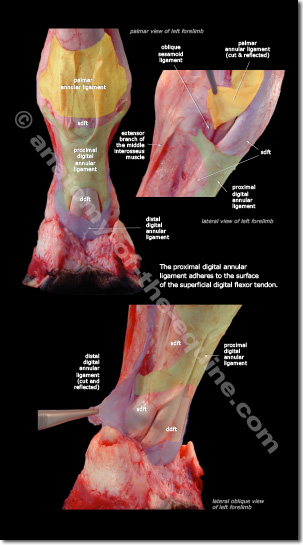

Retinaculum & palmar annular ligament

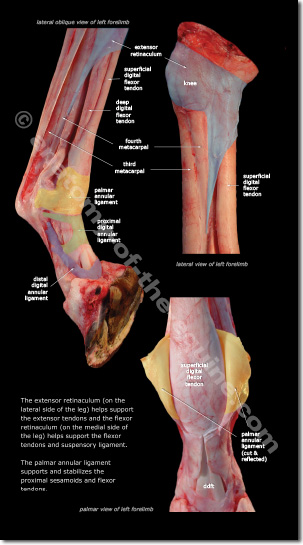

Through the clever use of color overlays these photos reveal the function of the thickened deep fascial membranes known as retinaculums and annular ligaments.

It is clear to see how these structures are designed to support the tendons when the leg is in motion.

Layers of annular ligaments

The multiple layers of the annular ligaments add support to the fetlock and pastern.

This helps your client understand how many structures can be affected by injuries and hoof imbalances.

Inferior check ligament

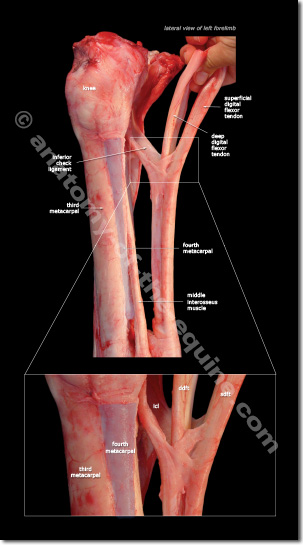

Designed to show how the inferior check ligament (ICL) attaches behind the knee and is tucked in between the splints.

The ICL directly connects to the deep digital flexor tendon, but also loosely connects and supports the superficial digital flexor tendon.

Particularly useful set of images when explaining check ligament problems.

Inferior check ligament & the deep digital flexor tendon

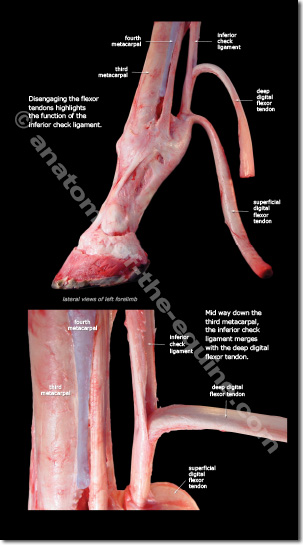

Disengaging the flexor tendons highlights the function of the inferior check ligament.

Useful images when discussing check ligament surgery for laminitis and club feet.

Superficial and deep digital flexor tendons

This set of images is particularly useful in showing structures of the suspensory apparatus in the pastern. The multiple layers of ligaments are especially clear in the top image.

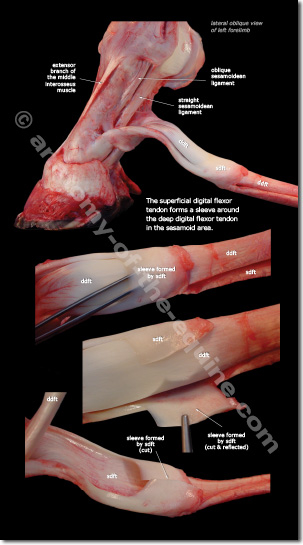

Unique, detailed images of the 'sleeve' created by the sdft surrounding the ddft.

Superficial digital flexor tendon attachment

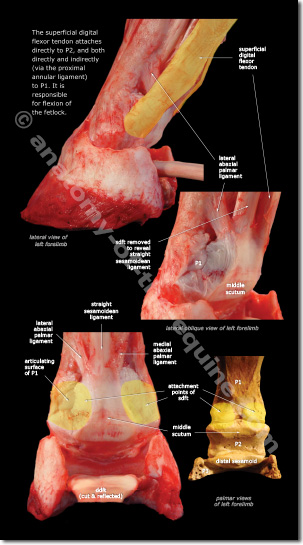

The superficial digital flexor tendon (SDFT) is responsible for flexing the pastern. These images demonstrate how the SDFT branches in the pastern area and attaches to either side of the middle phalanx.

The middle scutum forms a flat, sliding plate for the deep digital flexor tendon.

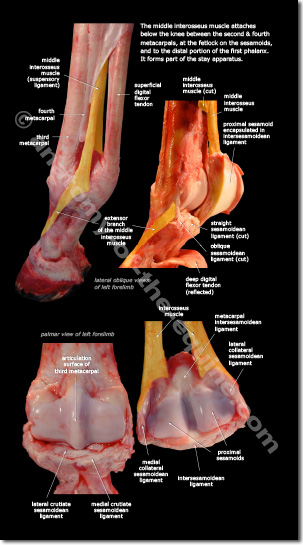

Suspensory ligament

These images are organized to help envision how the suspensory ligament functions as a unit.

Suspensory apparatus

These photos expand on the previous set, detailing the suspensory ligament and the connection to the sesamoid bones.

The layers of ligaments that stabilize the sesamoids to the pastern reveal their intricate nature.

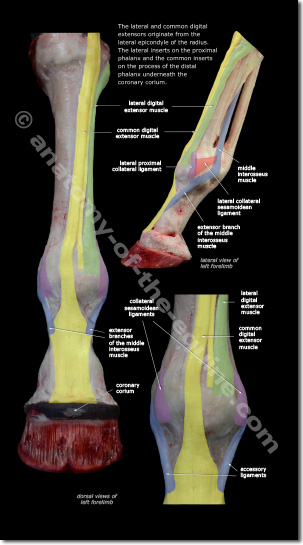

Extensor tendons & suspensory ligaments

The connection between the common extensor tendon and the suspensory ligament is key to the support of the fetlock during extension of the limb and a vital part of the stay apparatus during stance.

Color highlighs show how the structures relate and where they interconnect.

Attachment of the common extensor and suspensory branches

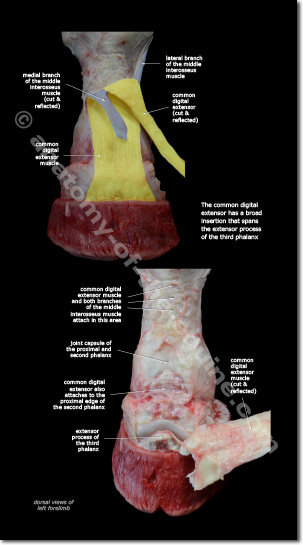

Detailed images of the attachment points of the common extensor tendon.

Exceptionally useful images when discussing the effects of distal decent of P3 on the soft tissues beneath the coronary band.

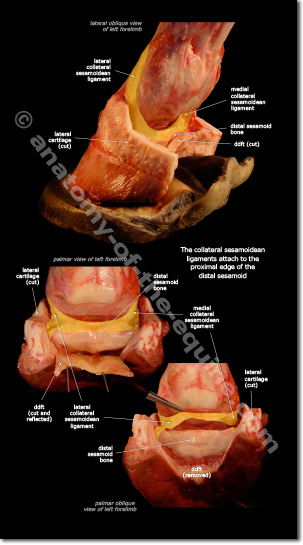

Collateral sesamoidean ligaments

Some of the most unique and informative images in this book.

The navicular bone is buried deep within the hoof capsule and its support structures are often misunderstood.

These images show how the collateral navicular ligaments attach along the top edge of the bone and wrap around to the front of the pastern.

Particularly useful when discussing horses that suffer from navicular problems. Helps owners understand how problems often involve more than just the bone.

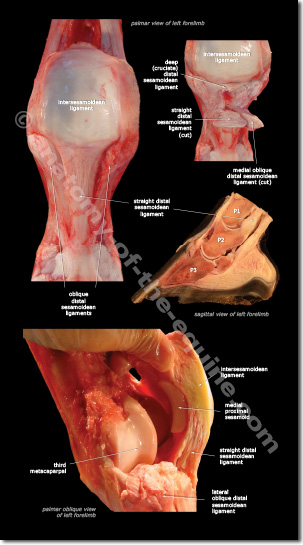

Impar ligament
(distal sesamoidean ligament)

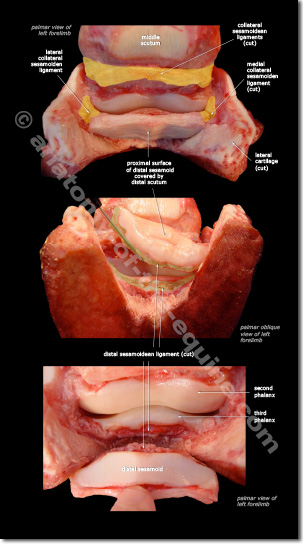

Detailed images of the ligament attachments of the navicular bone.

Particularly useful for understanding the complexity of the navicular region of the hoof.

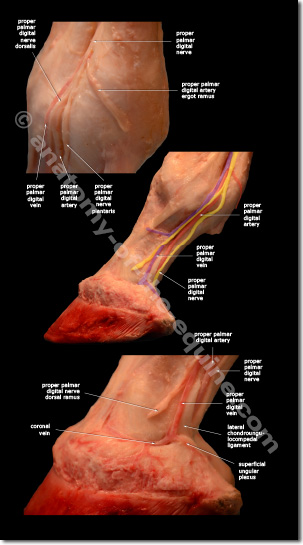

Veins, arteries,
& nerves

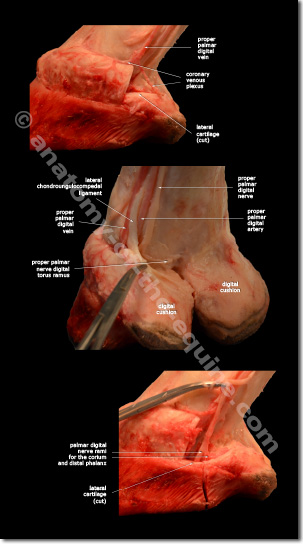

Beneath the first layer of fascia lies a neurovascular bundle.

These veins, arteries and nerves branch out and cover all aspects of the hoof.

These images are wonderful for teaching owners where to find the digital pulse on the laminitic horse.

Nerves of the foot

Detailed images of the nerves as they dive within the soft tissues of the caudal region of the foot.

Lateral view

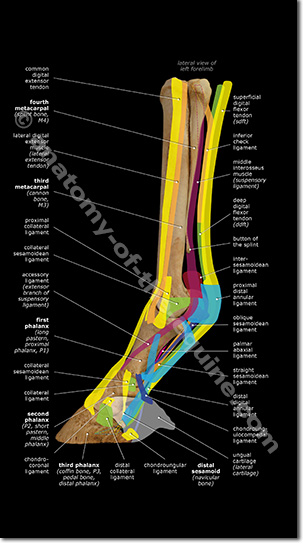

Colorized diagram of the tendons and ligaments of the equine distal limb assembled to view the various layers.

Proper and common names of each structure are given for quick reference to alternative terminologies.

Palmar view

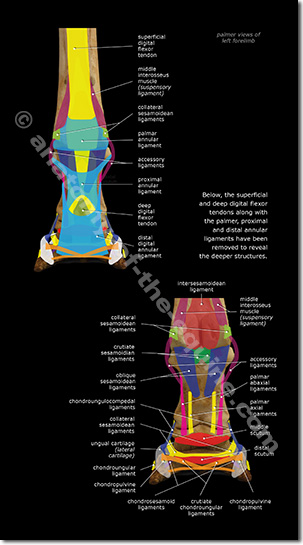

Diagram of the tendons and ligaments of the equine distal limb assembled to view the various layers as seen from behind.

Proper and common names have been listed for quick reference.
